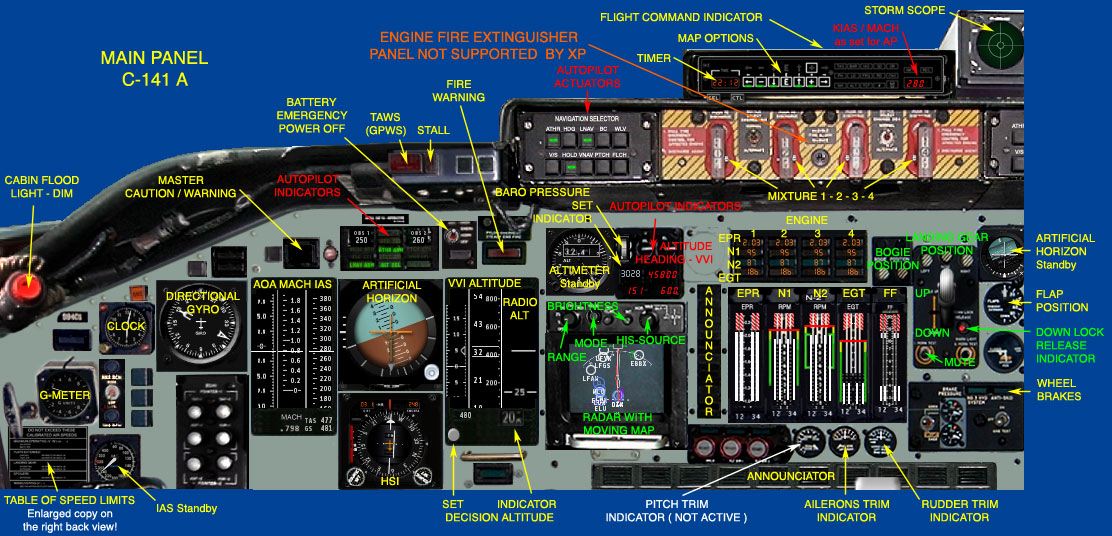

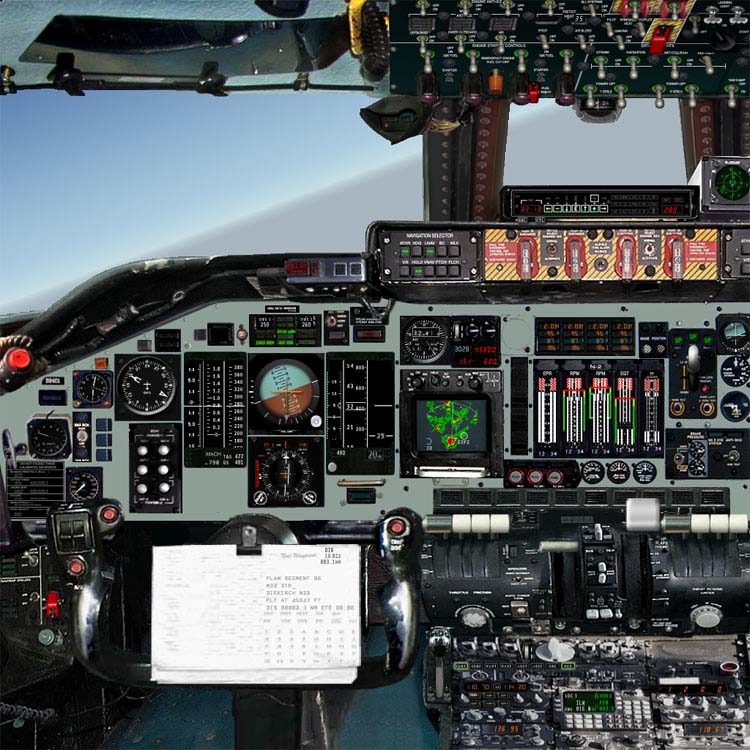

The Panel of the C-141A/B

The panel is even more complex and detailed as in the C-5B!

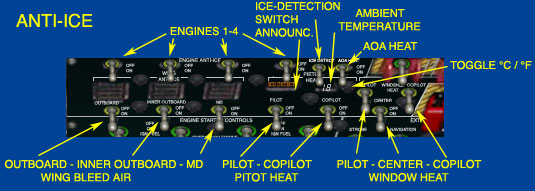

The Anti-Ice section of th OH panel.

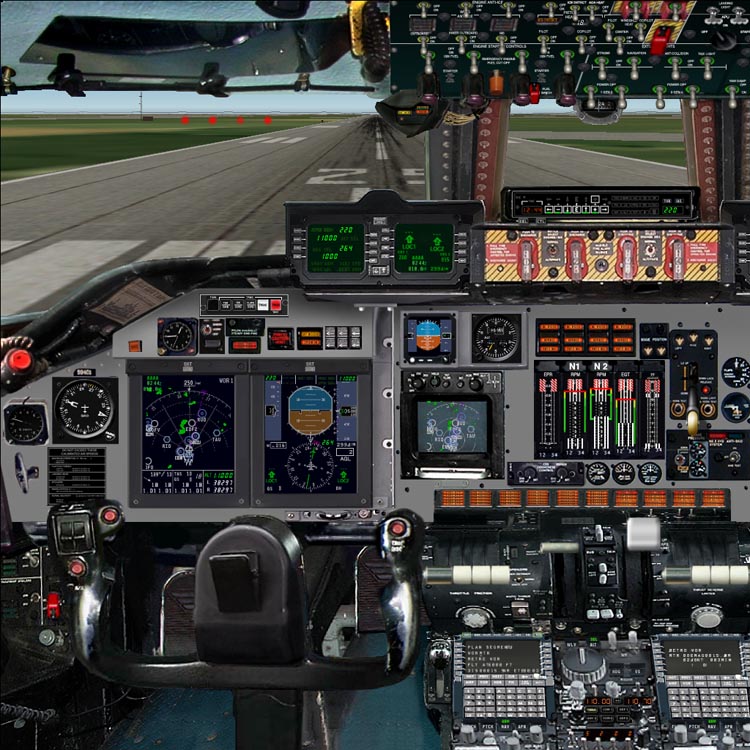

The Panel of the C-141C

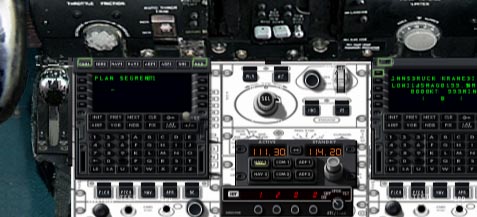

Monitors for Display Avionics Management Unit (DAMU) and Primary and Secondary Flight Display have been mounted, as well as a Flight Management System (FMS) with 2 Multi-Function Control Display Units (MFCDU) on the center pedestal.

All objects are placed upon authentic drawings, to ensure the correct position of each item... as far as PlaneMaker permits it.

The final artwork, based on fotographs of the real cockpit, is created after the funcionality has been varified during countless testflights.

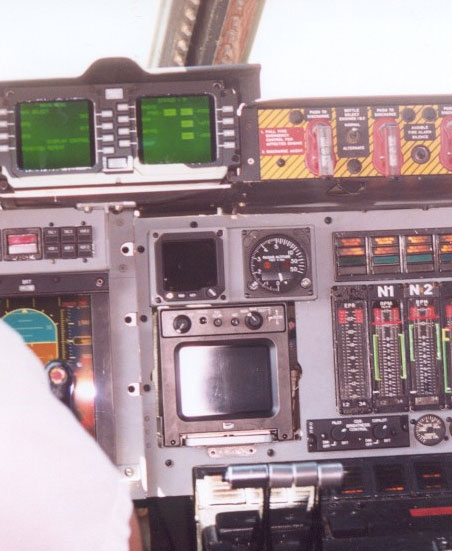

A section of the real C-141C panel.

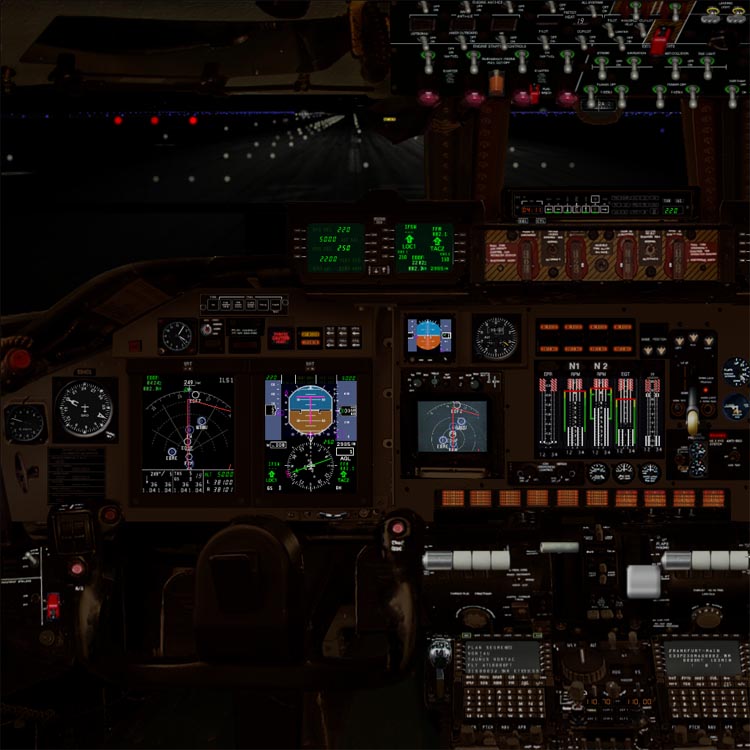

Cockpit of he C-141C at night.


The DAMU - X-plane can only simulate a tiny friction of the DAMU's options

***

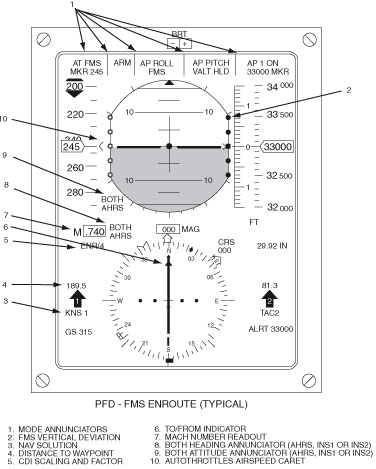

The Primary Flight Display

***

I did my best to meet drawings like thes examples in x-plane...

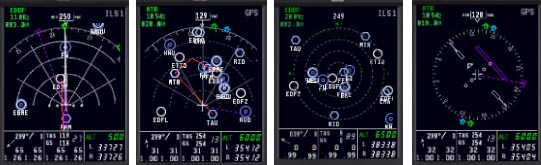

Secondary Flight Display with different map modes.

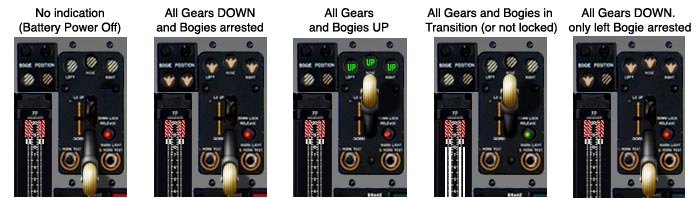

Gear and Bogie Indicators
